DESCRIPTION

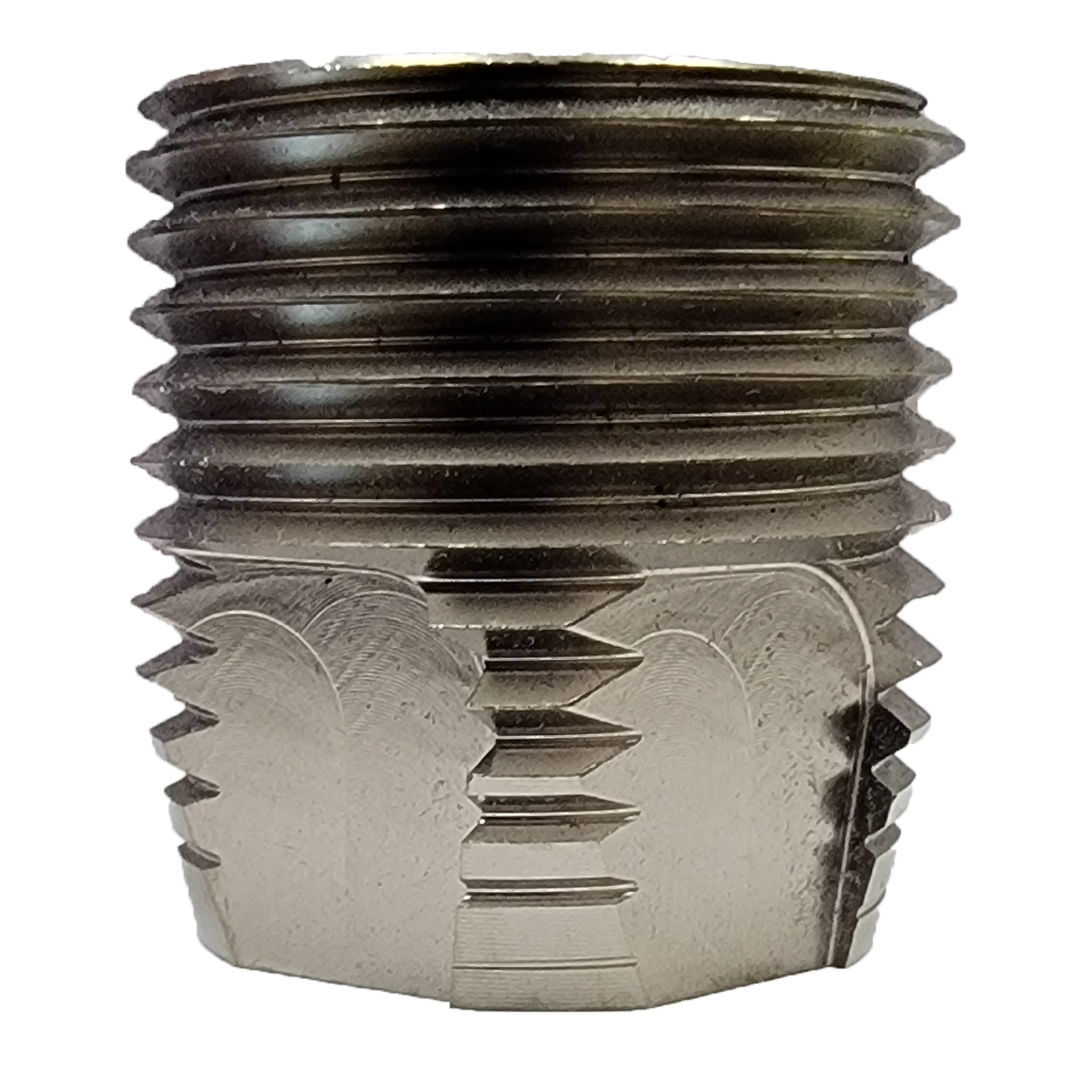

GARDSERT 1-14
- Self-Tapping
- Self-Cutting
- Self-Locking
- Won't Pull Out
- Won't Wear Out
- Requirement: Gard Deluxe Tapping Fluid is Required in all installations.
- External Diameter: 1 1/2"
Internal and External dimensions are for reference only
When installing in 6000 Series Aluminum - use the steel size drill bit
The use of GARD Deluxe Tapping Fluid when installing is strongly recommended
FEATURES
- Wall Standard
- Material Hardened Stainless Steel
- Installation Tool 200M-1614T
- Internal Thread Size and Thread Pitch 1"-14
- Outside Diamter (Inches) 1.5
- Length(In Inches) 1.5
- Steel, Cast Iron, 6000 Series Alum. Drill Size 1-7/16 (Part No. 30-23)
