DESCRIPTION

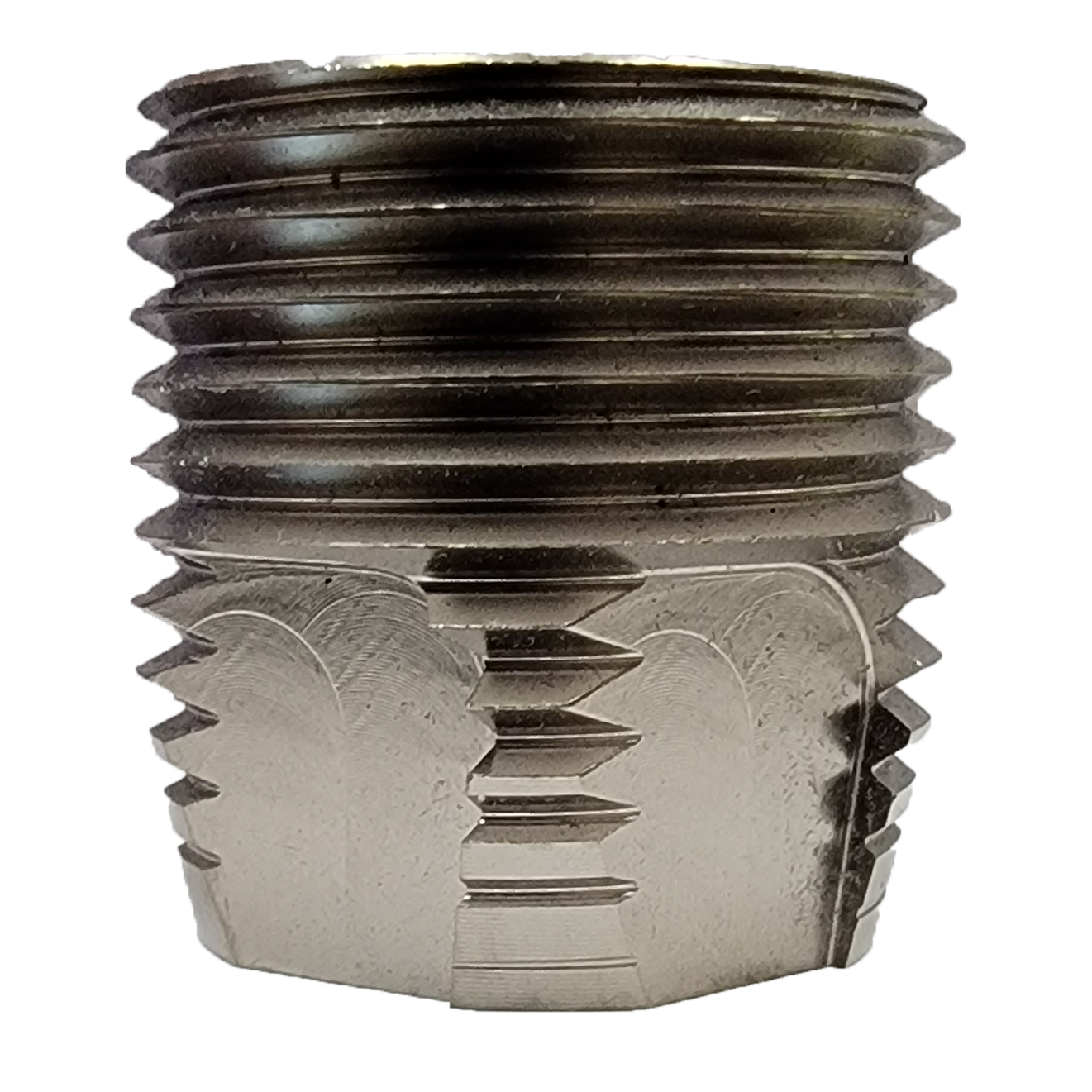

GARDSERT 1-1/8-7
- Self-Tapping
- Self-Cutting
- Self-Locking
- Won't Pull Out
- Won't Wear Out
- Requirement: Gard Deluxe Tapping Fluid is Required in all installations.
- Note: Internal and External dimensions are for reference only
- Product Requirement: When installing in 6000 Series Aluminum - use Steel size drill bit
Internal and External dimensions are for reference only
When installing in 6000 Series Aluminum - use the steel size drill bit
The use of GARD Deluxe Tapping Fluid when installing is strongly recommended
FEATURES
- Wall Standard
- Material Hardened Stainless Steel
- Outside Diamter (Inches) 1.75
- Installation Tool 200M-1807T
- Size Type Fractional
- Internal Thread Size and Thread Pitch 1 1/8"-7
- Length(In Inches) 1.680
- Steel, Cast Iron, 6000 Series Alum. Drill Size 1-11/16 (Part No. 30-27)
- Size 1-1/8-7
