DESCRIPTION

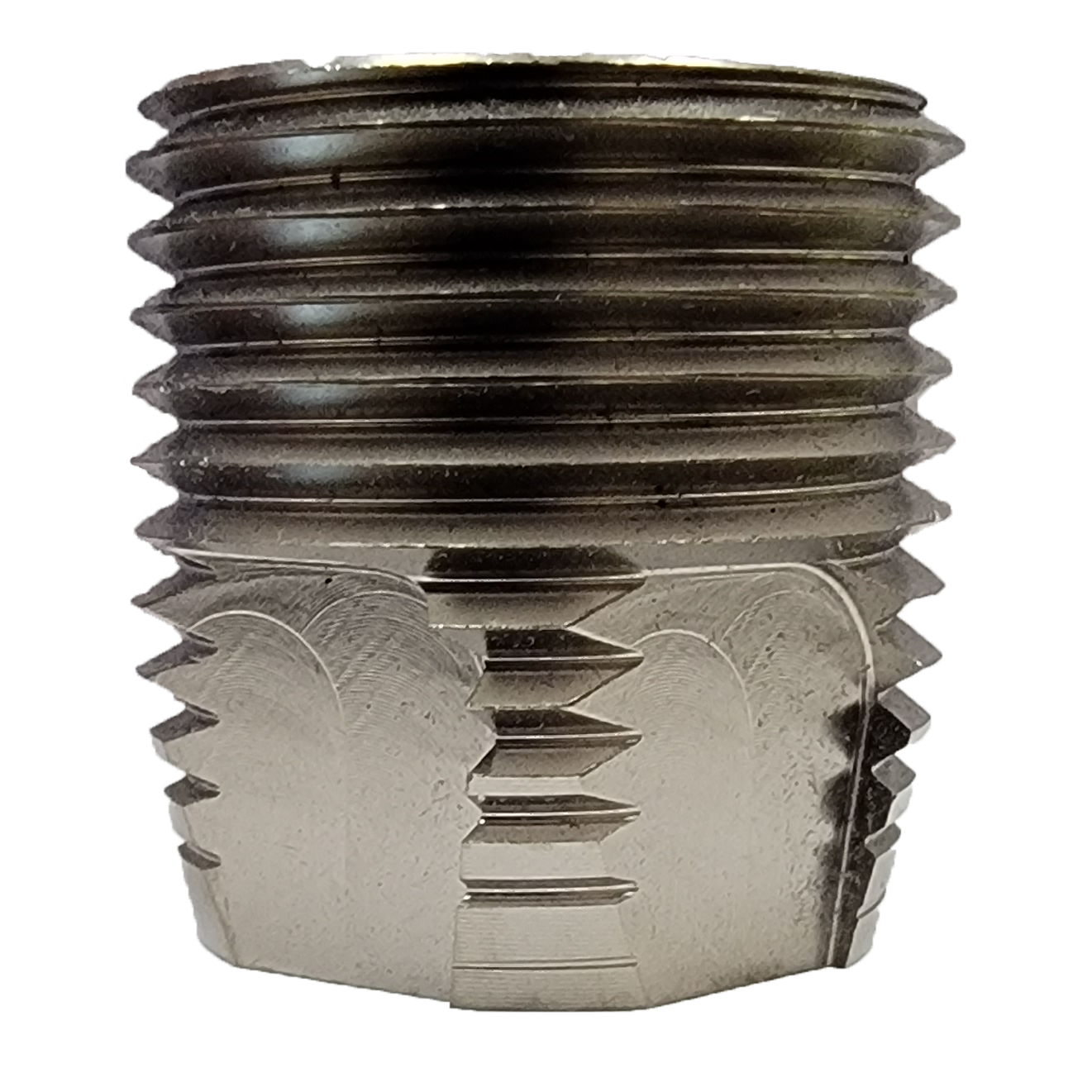

GARDSERT 7/8-9
- Self-Tapping
- Self-Cutting
- Self-Locking
- Won't Pull Out
- Won't Wear Out
- Requirement: Gard Deluxe Tapping Fluid is Required in all installations.
- Note: Internal and External dimensions are for reference only.
Internal and External dimensions are for reference only
When installing in 6000 Series Aluminum - use the steel size drill bit
The use of GARD Deluxe Tapping Fluid when installing is strongly recommended
FEATURES
- Wall Standard
- Outside Diamter (Inches) 1.25
- Installation Tool 200M-1409T
- Pilot Hole Size & Drill Part No. 1-3/16 (Part No. 30-19)
- Length(In Inches) 1.3125
- Size Type Fractional
- Material Stainless Steel
- Internal Thread Size and Thread Pitch 7/8"-9
- Steel, Cast Iron, 6000 Series Alum. Drill Size 1-3/16 (Part No. 30-19)
